A major developer of Industry 4.0 computing solutions, AAEON launches the BOXER-6616: Fanless Embedded Box PC with Intel® Celeron® Processor N3350/N4200

  • runs smoothly in harsh, industrial settings
  • has reliable data storage system for high-frequency vibration environment
  • has dust-free deisgn combats iron oxide and other small particles
  • has remote on/off switch
  • has comprehensive I/O interface to connect to devices including PLCs
  • has a power surge protector

The BOXER-6616 is a low-power embedded PC perfect for applications in digital signage, building control and factory automation. With a wide voltage input of 9-24V, and powered by the newest ApolloLake CPU, the BOXER-6616 is perfect for entry-level rugged industrial uses as it is compact and affords minimal power consumption (with a capped limit of 17 watts) whilst effectively enhancing system performance at an affordable price.

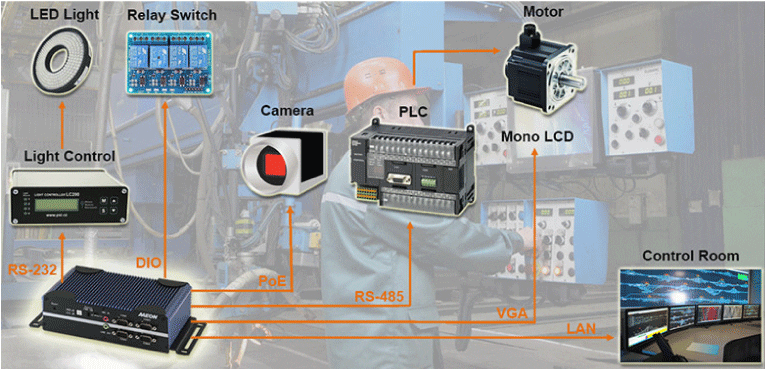

The BOXER-6616 is the first and sole embedded BOX PC on the current market to offer an interchangeable AT/ATX dip switch on the external I/O side, and supports remote control for easier accessibility. As is the case with all of AAEON’s rugged PC products, a customary offering of rich I/O ports for maximum expansion is native to the BOXER-6616, including 4 USB 3.0 ports, 2 RS-232/422/485 slots, 4 RS-232 slots, 2 Intel LAN ports, HDMI, VGA, an 8-bit DIO, and two antenna slots. The BOXER-6616 features AAEON’s trademark outer rugged chassis design, providing the ultimate thermal solution and making it ideal for automation/PLM applications such as factory process controls, energy management, building management systems, barrier speed gates and entrance control turnstiles, as well as safes and vaults.

▲ Anti-vibration Design: 3G (HDD)
▲ Wide Temperature Support: -15°C – 60°C
▲ Wide Range Power Input with Over-current & Surge Protection
▲ Rich I/O: COM x6, USB 3.0 x4, MiniCard, VGA, HDMI
▲ IP40 Design
▲ Remote Power on-off
▲ BIOS Setting: RS-232/485
